SWICHGEAR Parts Eco-designed Epoxy Insulated Load Break Switches for 25.8kv Overhead Line

Eco-designed Epoxy Insulated Load Break Switches for 25.8kv Overhead Line

This is a 22.9 kV switch for overhead power distribution lines, applying the epoxy-insulated and vacuum interrupt formats instead of the existing sulfur hexafluoride (SF6) gas-insulated format, and is of a structure that does not require maintenance due to gas leakage or replenishment.

Product characteristics

  • Applies internal vacuum interruption format
  • Switching performance improvement and rise in capacity to 630A rated current
  • Prevents 3-phase short accidents with a separated structure for individual phases
  • Resolved danger of high-pressure tank explosion from sulfur hexafluoride (SF6) gas insulation format
  • Uses epoxy bushing for strength against contaminated environments, enabling application even in dusty or soiled areas
  • Maintenance-free setup, with no need for a gas or pressure release and locking device [Maintenance Free]

Structural stability

Eco-friendliness

Reliable quality

Constantly Challenging, Creating a New Future

We are creating a new future by constantly taking on challenges.

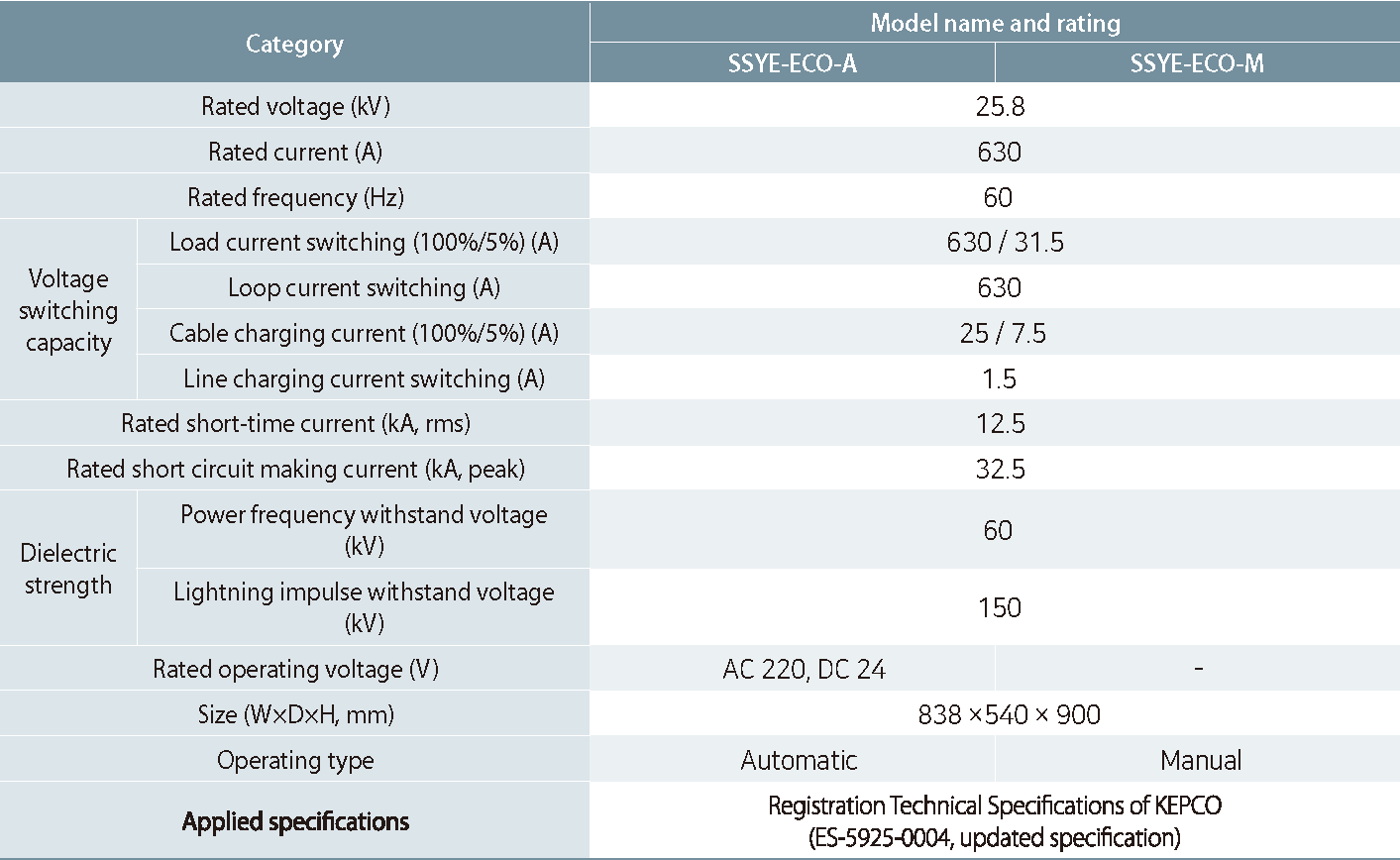

specification

Product characteristics

Eco-designed Epoxy Insulated Load Break Switches for 25.8kv Overhead Line

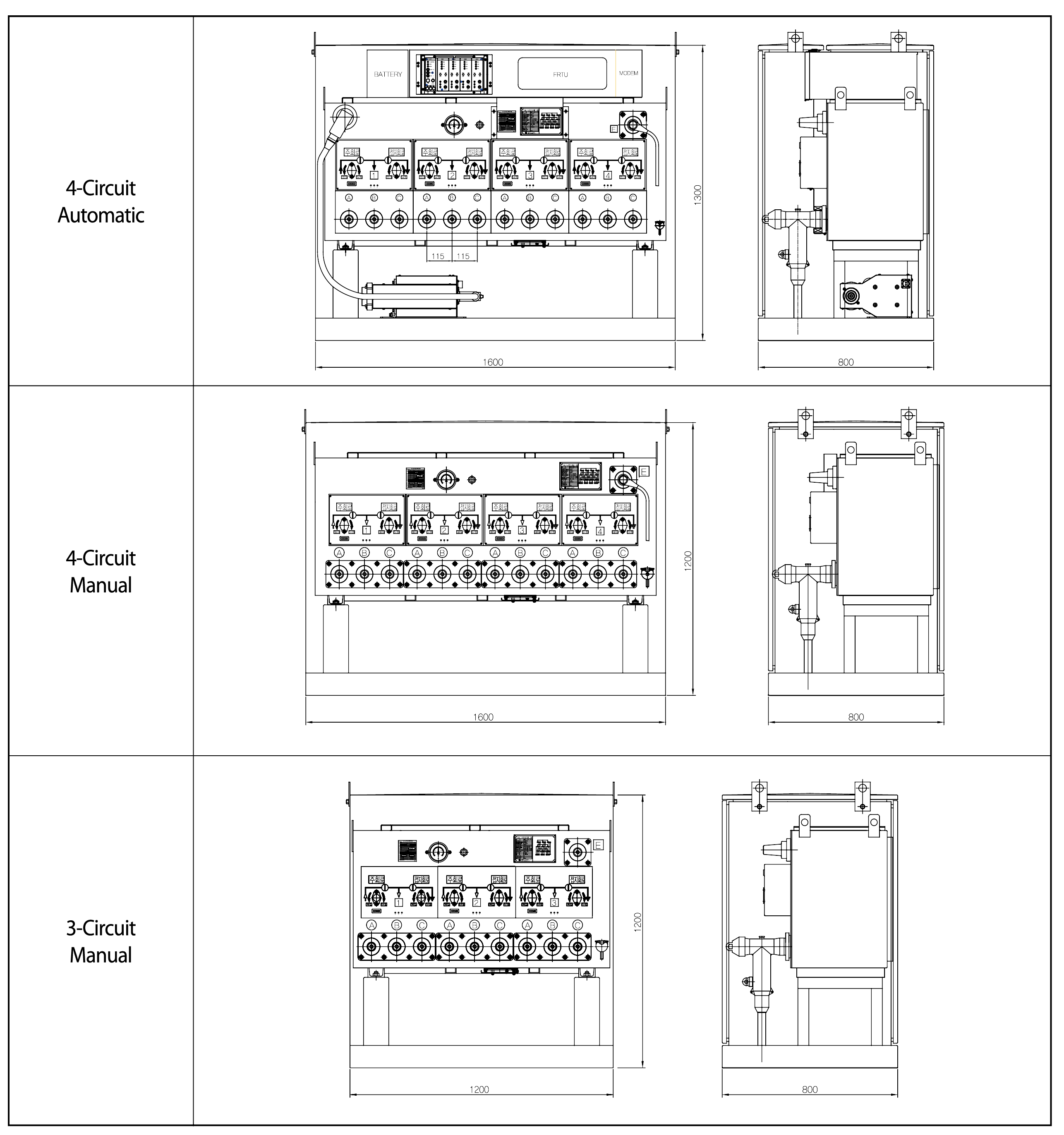

Dimension

Eco-designed Epoxy Insulated Load Break Switches for 25.8kv Overhead Line
